Terminal Block 8 Pins

🌟 Product Description

The Terminal Block 8Pins is a compact 8-pin PCB screw terminal block with a 5.0 mm pitch. It provides a secure, removable connection point for power or signal wires in robotics, CNC machines and embedded electronics, making it easy to connect and service external components without soldering directly to the board.

🔑Key Features & Specs

• Number of Positions – 8 pins for connecting one positive and one negative/power or signal pair.

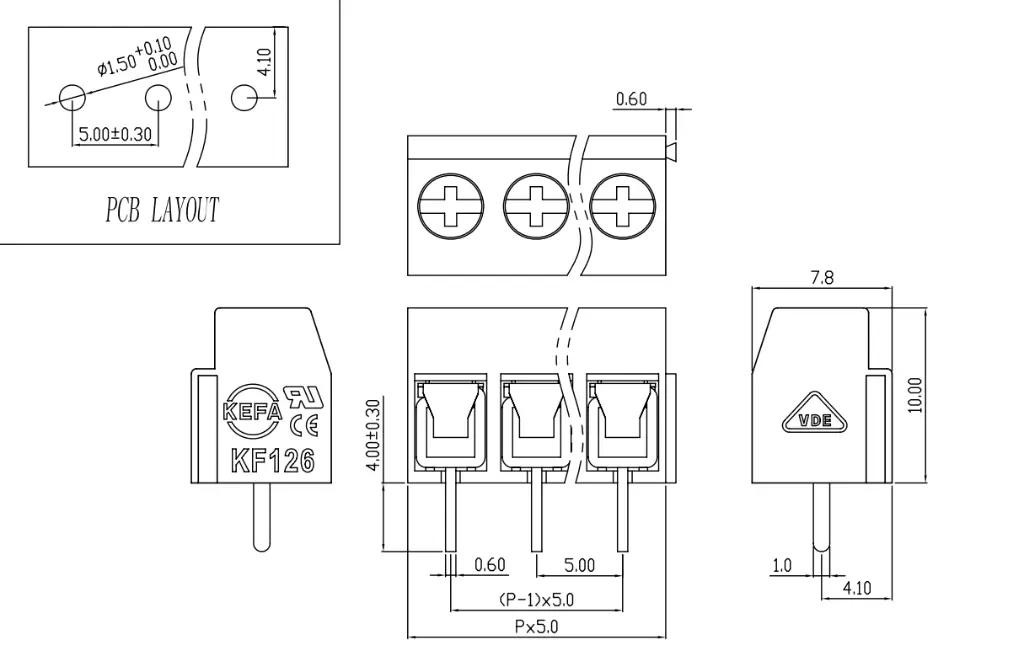

• Pitch – 5.0 mm (0.197″) center-to-center pin spacing for standard PCB footprints.

• Rated Voltage/Current – Typically 250 V AC/DC at 6 A.

• Wire Size Range – Accepts 22–14 AWG (0.5–2.5 mm²) solid or stranded wires.

• Connection Type – Screw clamp with rising plate for secure hold and low contact resistance.

• Mounting – Through-hole PCB mount with keyed interlock to stack multiple blocks.

• Operating Temperature – –40 °C to +105 °C depending on model.

Applications – Power connections to stepper drivers, sensors, relays, and modules on CNC control boards, robotic controllers, and other embedded systems needing quick wire disconnect/reconnect.
