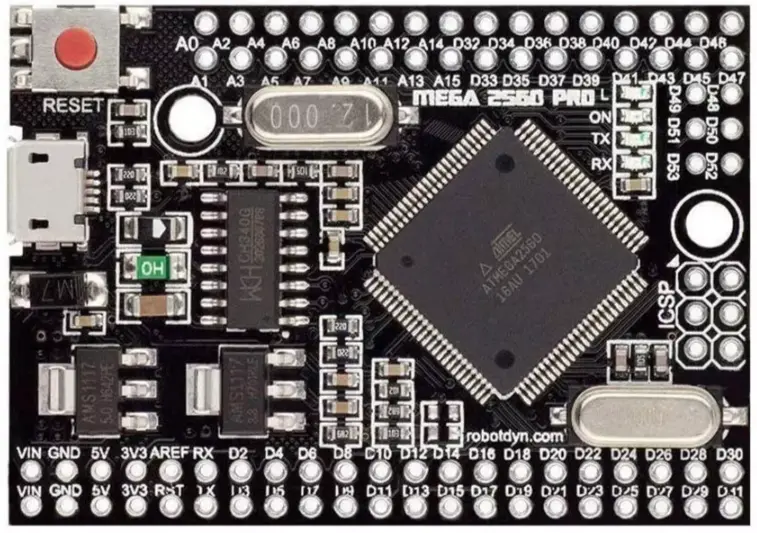

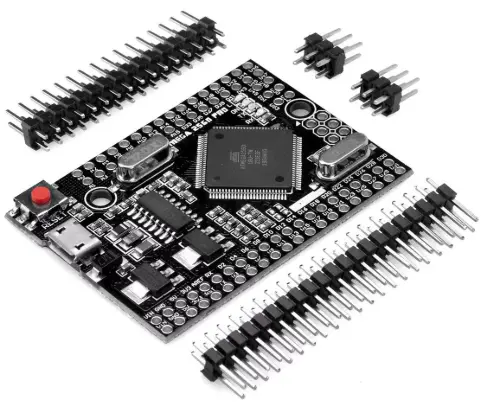

Arduino Mega2560 Pro ATmega2560-16AU USB CH340G

🌟 Product Description

The Arduino Mega2560 Pro ATmega2560-16AU USB CH340G is a compact development board based on the powerful ATmega2560-16AU microcontroller running at 16 MHz It offers the core functionality of the Arduino Mega 2560 in a smaller embedded-style board, making it ideal for robotics, 3D printers, CNC machines, automation systems, sensor hubs, and complex DIY electronics projects. With 54 digital I/O pins, 16 analog inputs, 15 PWM outputs, and 4 hardware serial ports, this board is designed for projects that require multiple modules, motors, displays, relays, sensors, and communication devices working together.

🔑 Key Features

• Based on the ATmega2560-16AU microcontroller
• Built-in CH340G USB-to-serial chip for programming via USB
• Compatible with Arduino IDE
• Compact Mega2560 Pro form factor for embedded projects
• Large number of I/O pins for advanced electronics builds
• 54 digital input/output pins
• 16 analog input pins
• 15 PWM output pins
• 4 hardware UART serial ports
• 16 MHz clock speed
• Suitable for robotics, automation, 3D printer control, CNC, and sensor systems
• Works with many Arduino Mega libraries and modules
• Great alternative when an Arduino UNO does not provide enough pins or memory

Specifications:

•   Microcontroller: ATmega2560 16AU
•  USB Interface: CH340G USB to serial converter
•  Clock Speed: 16 MHz
•  Operating Voltage: 5V
•  Input Voltage: commonly 6V 12V depending on board version
•  Digital I/O Pins: 54
•  PWM Pins: 15
•  Analog Input Pins: 16
•  Hardware Serial Ports: 4 UARTs
• Flash Memory: 256 KB
• SRAM: 8 KB
• EEPROM: 4 KB
• Logic Level: 5V
• Programming Software: Arduino IDE
• Board Selection in IDE: Arduino Mega 2560
• Typical Board Size: compact Mega Pro style, around 38 x 55 mm depending on manufacturer
• Compatible With: Arduino Mega 2560 projects, sensors, relays, displays, motor drivers, and   communication modules

Applications:

• Multimotored robot cars
• Robotic arms with multiple servos
• Humanoid robot controllers
• Line follower and obstacle avoidance robots
• CNC machine controllers
• 3D printer control projects
• Smart home automation systems
• Industrial sensor monitoring
• Greenhouse automation
• Automated irrigation systems
• Multichannel data logging
• Weather station projects
• Security and alarm systems
• Relay control panels
• LED matrix and lighting control
• Touchscreen control panels
• RFID access systems
• GPS tracking projects
• IoT prototype gateways
• Educational engineering projects
• Advanced DIY electronics systems
