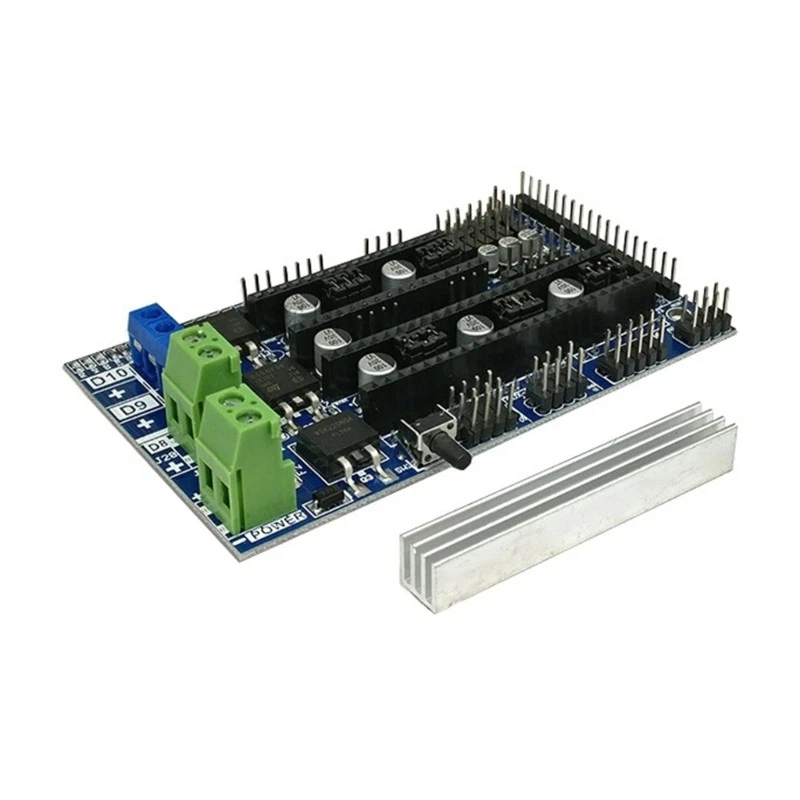

RAMPS 1.5 Shield for Arduino Mega – Reprap 3D Printer Controller Board

🌟 Product Description

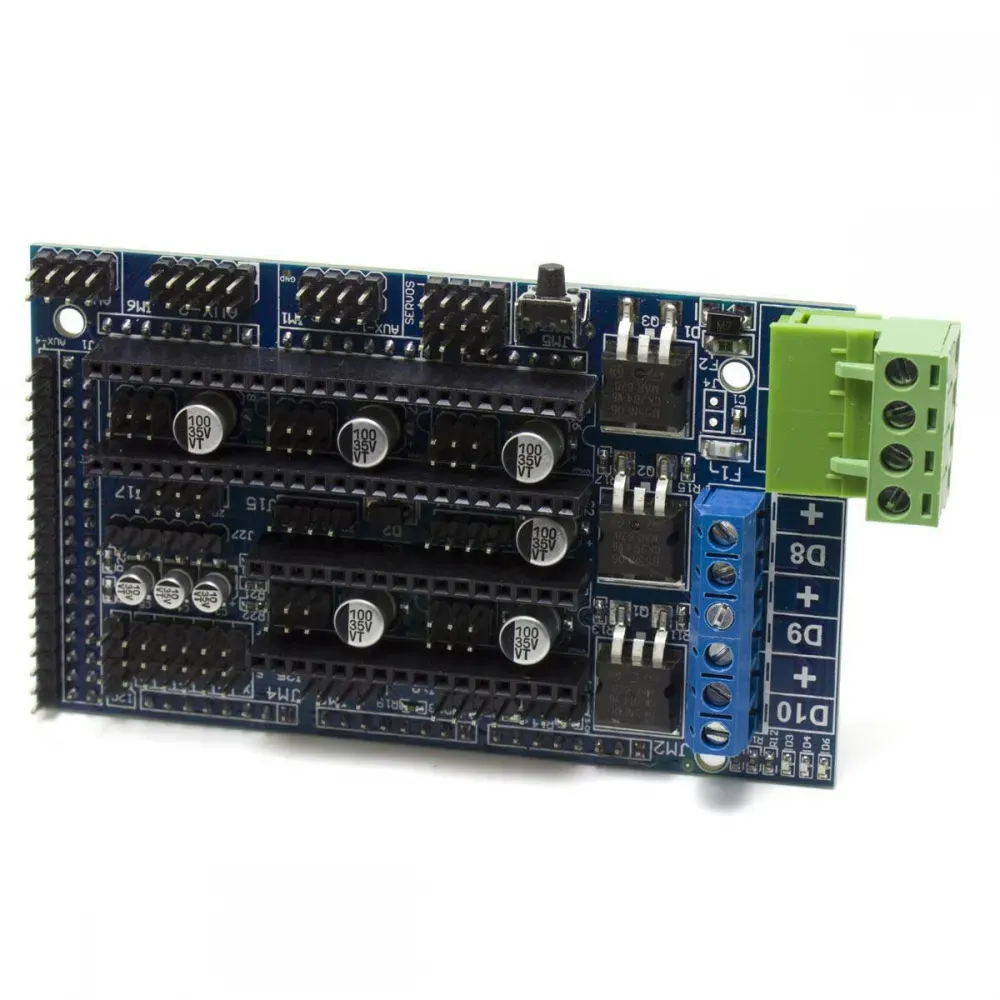

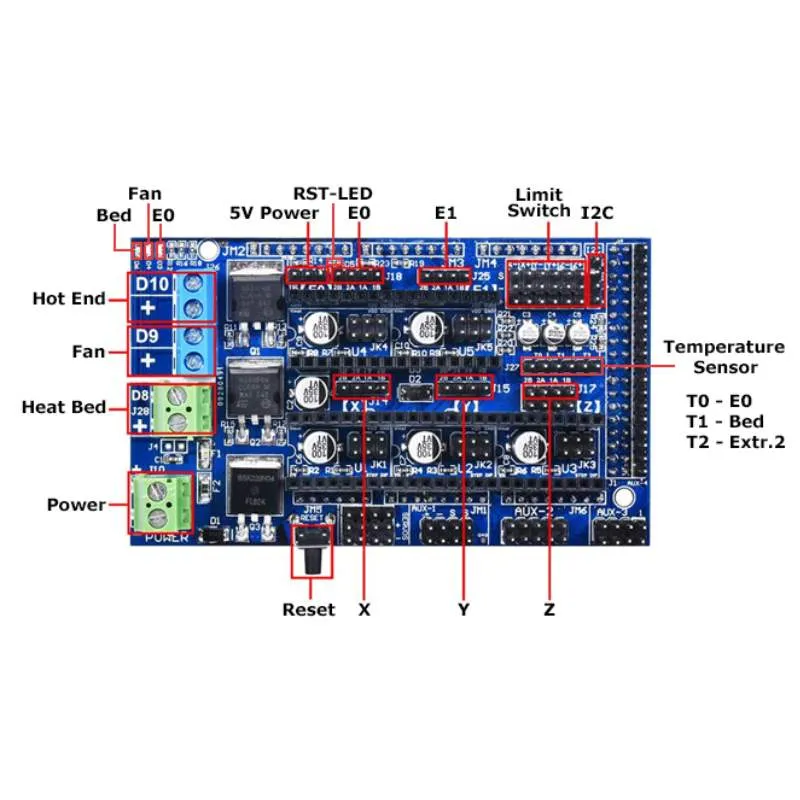

The RAMPS 1.5 Shield is an Arduino Mega-compatible controller board for RepRap and DIY 3D printers. RAMPS stands for RepRap Arduino Mega Pololu Shield. It works with an Arduino Mega 2560 and plug-in stepper drivers such as A4988, DRV8825, and compatible StepStick modules. The board provides connections for up to five stepper-driver channels, three heaters, three thermistors, endstops, fans, servos, LCD controllers, and other 3D-printer accessories. Stepper drivers and Arduino Mega are typically sold separately.

🔑 Key Features

• Designed for Arduino Mega 2560
• Modular RepRap 3D-printer controller design
• Five stepper-driver sockets for X, Y, Z, E0, and E1 axes
• Compatible with A4988, DRV8825, and other plug-in drivers
• MOSFET-controlled hotend, heated bed, and fan outputs
• Three thermistor input channels
• Endstop connectors for X, Y, and Z axes
• Servo connectors for auto bed leveling and accessories
• Expansion headers for LCD, SD, I2C, SPI, and other modules
• Separate power terminals for motor, heater, and bed circuits
• Marlin firmware compatibility
• Open-hardware RepRap ecosystem support

Specifications:

Apps in robotics, electronics and DIY and real life apps:

Important usage note:

RAMPS 1.5 is a controller shield and normally requires an Arduino Mega 2560, stepper-driver modules, a suitable power supply, motors, thermistors, and printer firmware. The maximum heater and bed current depends on the exact PCB, MOSFETs, connectors, wiring, power supply, and cooling. Use correctly rated cables, fuses, terminals, and external MOSFETs or solid-state relays when the heated-bed load exceeds the board’s safe capacity. Confirm the exact board version before applying 24V.
