🌟 Product Description

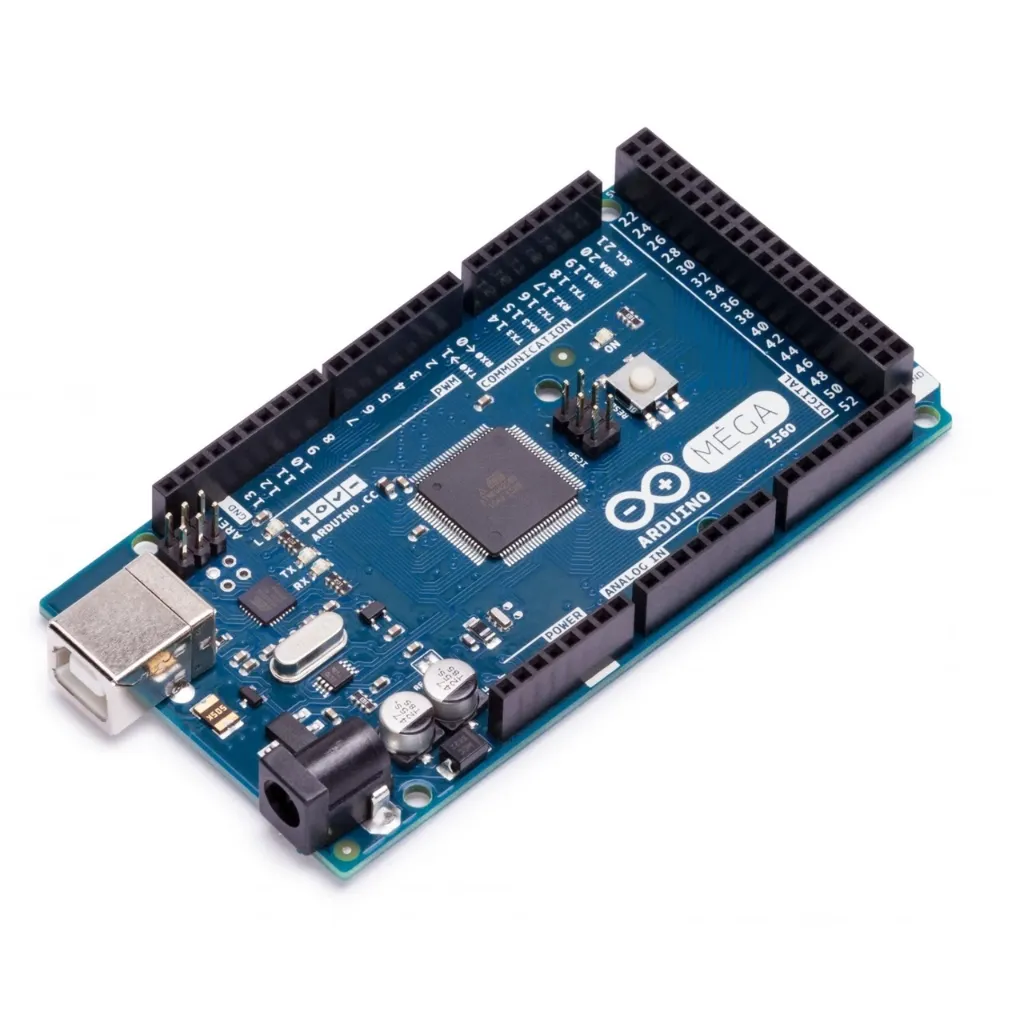

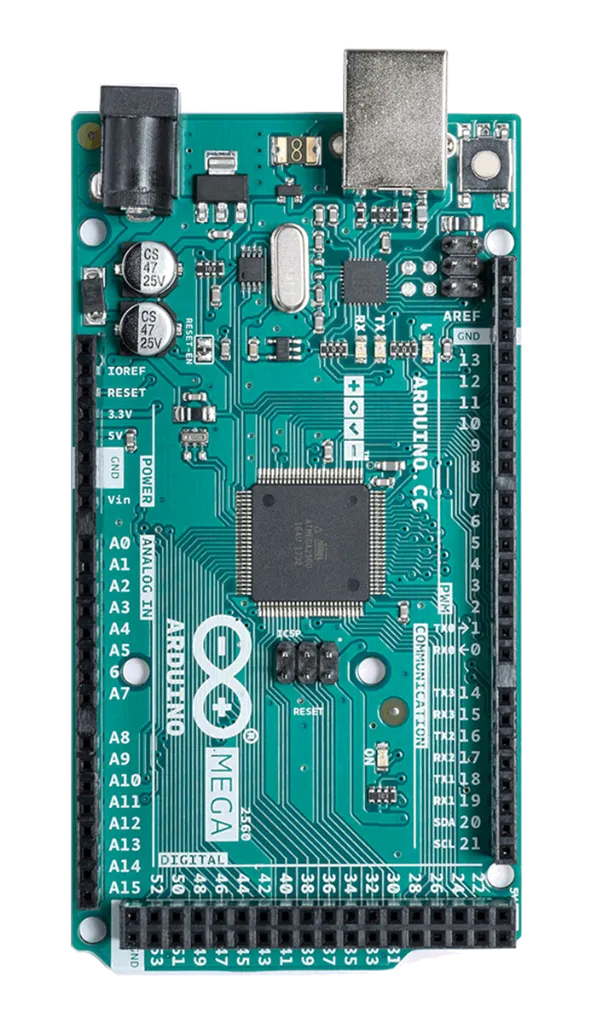

The Arduino Mega 2560 is an official Arduino microcontroller board based on the ATmega2560. It is built for projects that need more inputs, outputs, and serial communication than a standard UNO can offer. With 54 digital I/O pins, 16 analog inputs, and 4 hardware UARTs, it is a strong choice for robotics, 3D printers, CNC control, home automation, and complex electronics prototypes
🔑 Key Features
- ATmega2560-based Arduino board
- 54 digital input/output pins
- 16 analog input pins
- 15 PWM outputs
- 4 hardware serial ports (UARTs)
- 16 MHz clock speed
- USB connection and external power support
- Compatible with many Arduino shields
- Large memory for bigger sketches and projects
- Ideal for multi-sensor and multi-device systems
Specifications:
- Microcontroller: ATmega2560
- Operating Voltage: 5V
- Input Voltage Recommended: 7V-12V
- Digital I/O Pins: 54
- Analog Input Pins: 16
- PWM Pins: 15
- Flash Memory: 256 KB
- SRAM: 8 KB
- EEPROM: 4 KB
- Clock Speed: 16 MHz
- UARTs: 4
- USB Interface: USB connection
- Board Type: Microcontroller development board
Apps in robotics, electronics and DIY and real life apps:
- Robot control systems
- 3D printer controllers
- CNC machine control
- Home automation hubs
- Multi-sensor monitoring systems
- Motor driver and servo projects
- Industrial-style prototypes
- Educational electronics labs
- Smart irrigation systems
- LED matrix and display projects
- Data logging systems
- DIY automation panels
- Complex IoT gateways
- Real-life control units for custom machines
