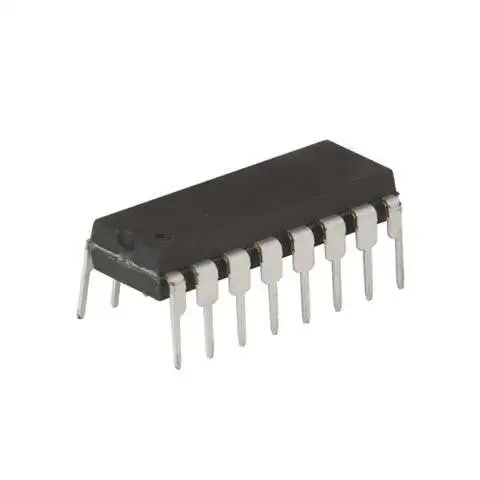

74161 IC Synchronous 4-Bit Counter (Direct Reset)
Features
- Internal Look-Ahead for Fast Counting
- Carry Output for n-Bit Cascading
- Synchronous Counting
- Synchronously Programmable
- Load Control Line
- Diode-Clamped Inputs
Specifications:
| Product Attribute | Attribute Value |
| Product Category: | Counter ICs |
| Mounting Style: | Through Hole |
| Package/Case: | PDIP-16 |
| Counter Type: | Binary |
| Logic Family: | LS |
| Number of Bits: | 4 bit |
| Counting Sequence: | Up |
| Operating Supply Voltage: | 4.75 V to 5.25 V |
| Minimum Operating Temperature: | 0 C |
| Maximum Operating Temperature: | + 70 C |
| Function: | Counter |
| Operating Temperature Range: | 0 C to + 70 C |
| Output Current: | 8 mA/- 400 uA |
